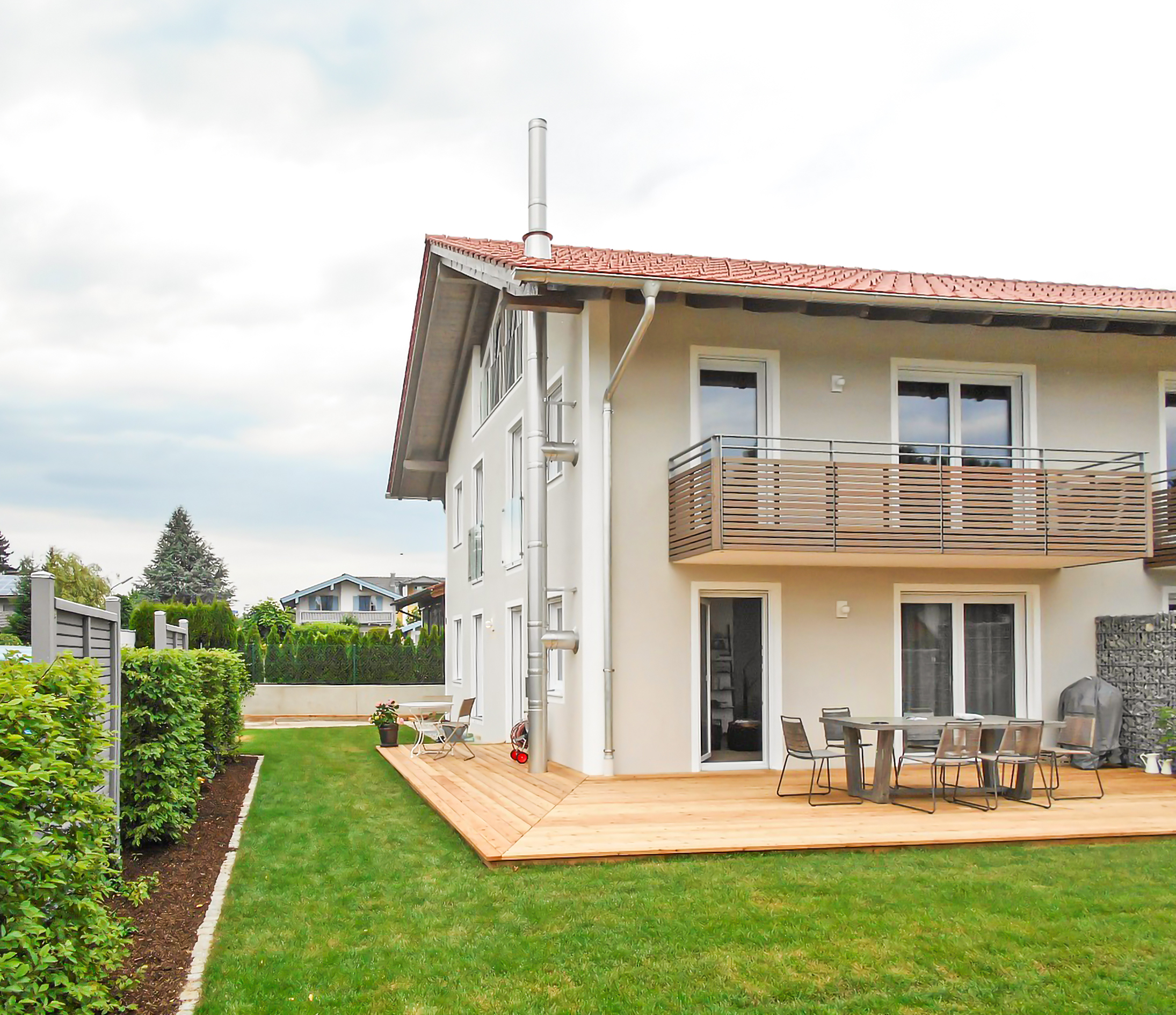

Twin Wall Insulated Chimney
DW-ECO 2.0 304: Multi-purpose factory-made twin wall insulated chimney system made in stainless steel AISI 304 in the inner liner and AISI 304 outer liner.
DW-ECO 2.0 316: Multi-purpose factory-made twin wall insulated chimney system made in stainless steel AISI 316 in the inner liner and AISI 304 outer liner.
Enquire with us today
Product information
Robust and reliable for high-temperature biomass and wood-fired systems
The DW ECO 2.0 is Jeremias UK’s most versatile twin-wall insulated chimney system, engineered to meet the demanding requirements of solid fuel and biomass combustion in commercial and industrial environments. With a temperature resistance of up to 600 °C and certified G-class soot fire resistance, it is the ideal solution for installations where safety, durability, and thermal performance are critical.
Its double-wall stainless steel construction, filled with high-density rock wool insulation, ensures excellent heat retention and protection of surrounding structures. The system’s modular push-fit connection with locking band allows for fast, secure installation and easy maintenance access.
| DW-ECO 2.0 304 | DW-ECO 2.0 316 | |
|---|---|---|
| MATERIAL | Inner Wall: AISI 304 Outer Wall: AISI 304 |
Inner Wall: AISI 316 Outer Wall: AISI 304 |
| INSULATION | High density rigid rock wool (120kg / m3) | High density rigid rock wool (120kg / m3) |
| WORKING TEMPERATURE | 600°C | 600°C |
| FINISHING | Standard: Bright annealed (BA) RAL colours (Check prices) Galvanised steel -15% (only lengths and elbows) |
Standard: Bright annealed (BA) RAL colours (Check prices) Galvanised steel -15% (only lengths and elbows) |
| WALL THICKNESS | Indoor wall: 0.4 mm – 0.5 mm – 0.6 mm (according to Ø) Insulation: 25 mm (32 mm starting in Ø650 mm) Exterior wall: 0.4 mm – 0.5 mm – 0.6 mm (according to Ø) |
Inner wall: 0,4 – 0,5 – 0,6 (depending on the diameter/request) Insulation: 25 mm (32 mm starting in Ø650 mm) Outer wall: 0,4 – 0,5 – 0,6 (depending on the diameter) |
| AVAILABLE DIAMETERS (mm) | 250 – 300 – 350 – 400 – 450 – 500 – 550 – 600 | 80 – 100 – 130 – 150 – 180 – 200 – 250 – 300 – 350 – 400 – 450 – 500 – 550 – 600 – 650 – 700 – 750 – 800 |
| CONNECTION SYSTEMS | Male-female conical connection with single connection clamp up to Ø125, and wide (2.0) from Ø150mm | Male-female push fit connection secured by locking band (2.0) included |
| FIRE RESISTANCE | Fire resistance classifications according to EN 13501-2: – EI180 ve (or– > i) T200 – EI120 ve (or– > i) T600 – EI120 ho (or– > i) T600 |
|
| CE CERTIFICATE | 0036 CPR 9174 030 | 0036 CPR 9174 030 |
| EC CLASSIFICATIONS (UNE-EN 1856-1) | T600 – N1 – D – Vm – L20040 – G(70) T450 – N1 – D – Vm – L20040 – G(70) T400 – N1 – W – Vm – L20040 – O(30) T200 – P1 – W – Vm – L20040 – O(00) (with joint seal DW2526) T200 – H1 – W – Vm – L20040 – O(00) (with joint seal DW2526) |
T600 – N1 – D – V3 – L50040 – G(70) T450 – N1 – D – V3 – L50040 – G(70) T400 – N1 – W – V2 – L50040 – O(30) T200 – H1 – W – V2 – L50040 – O(20) (with joint seal DW2526) T120 – H1 – W – V2 – L50040 – O(00) (with condensing joint seal DW2526C) |
