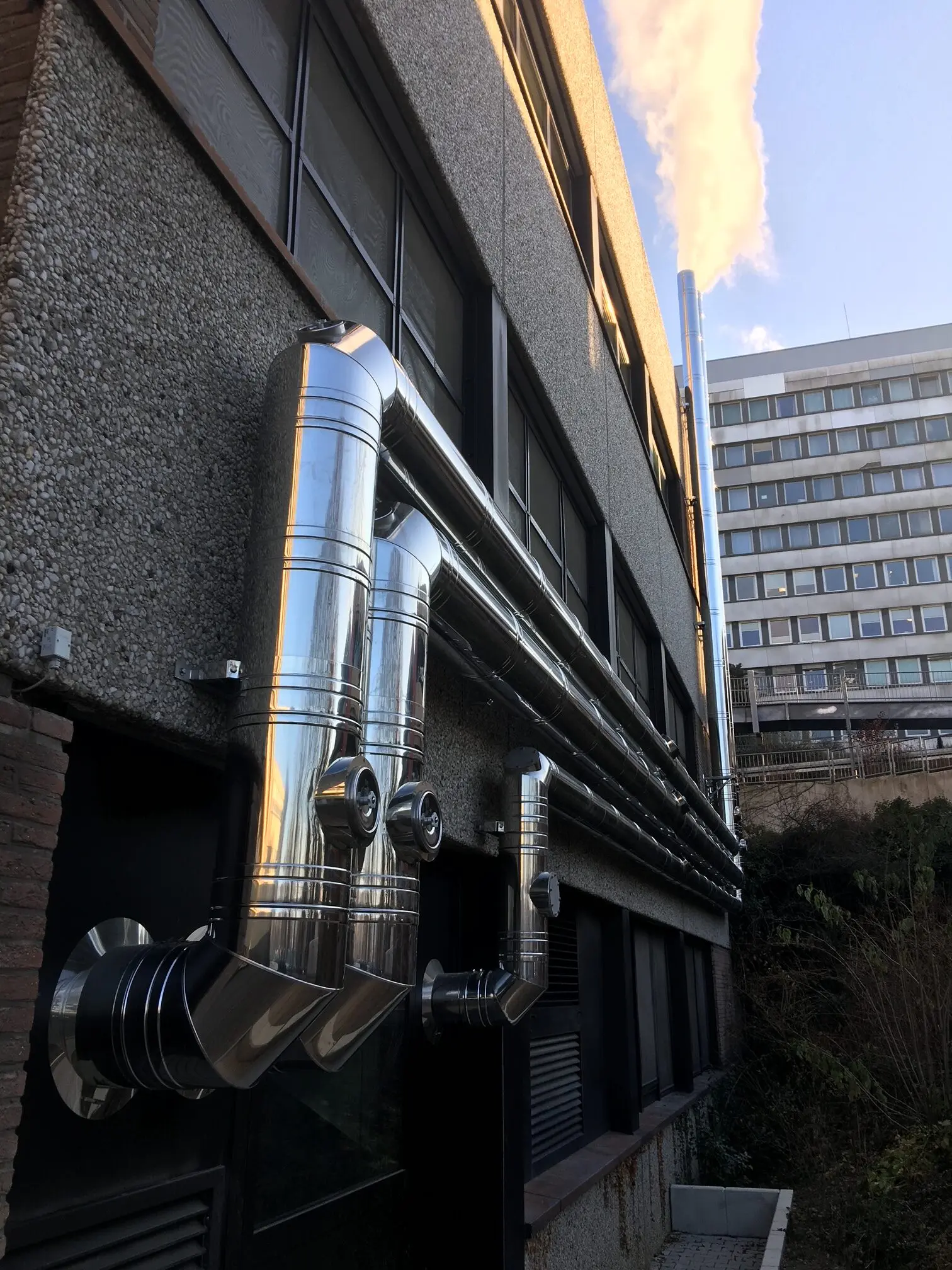

Gas Condensing Flue Systems

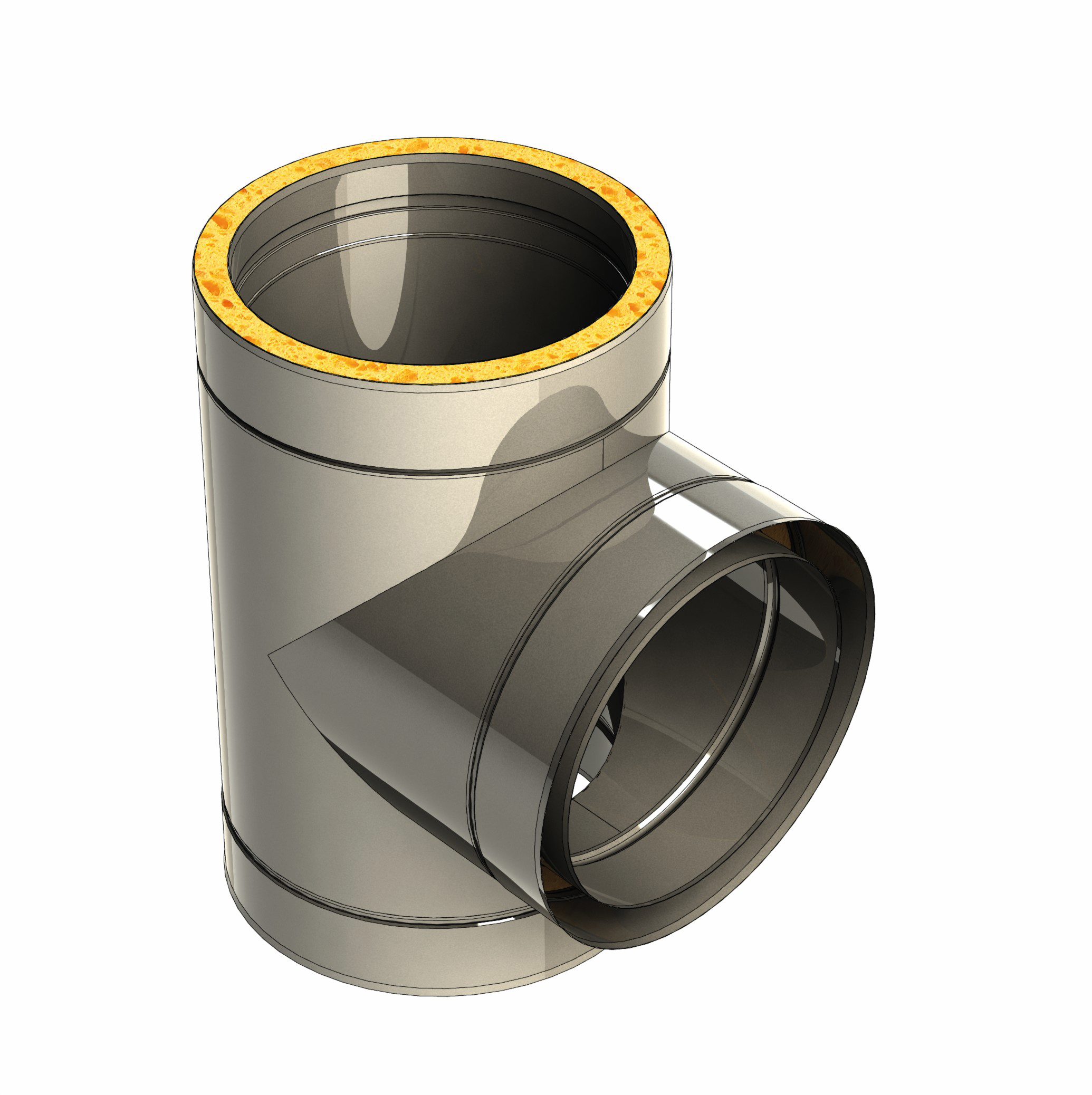

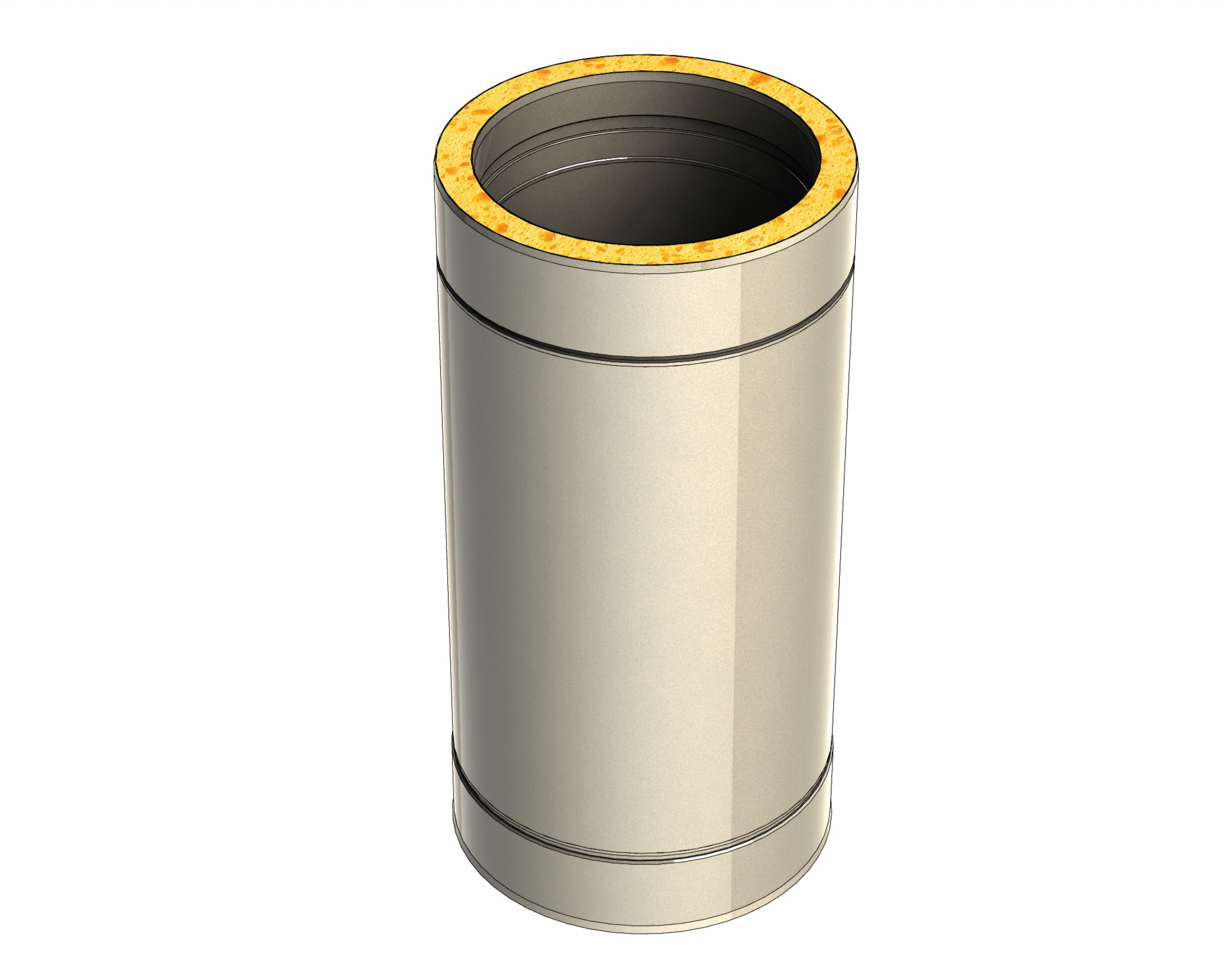

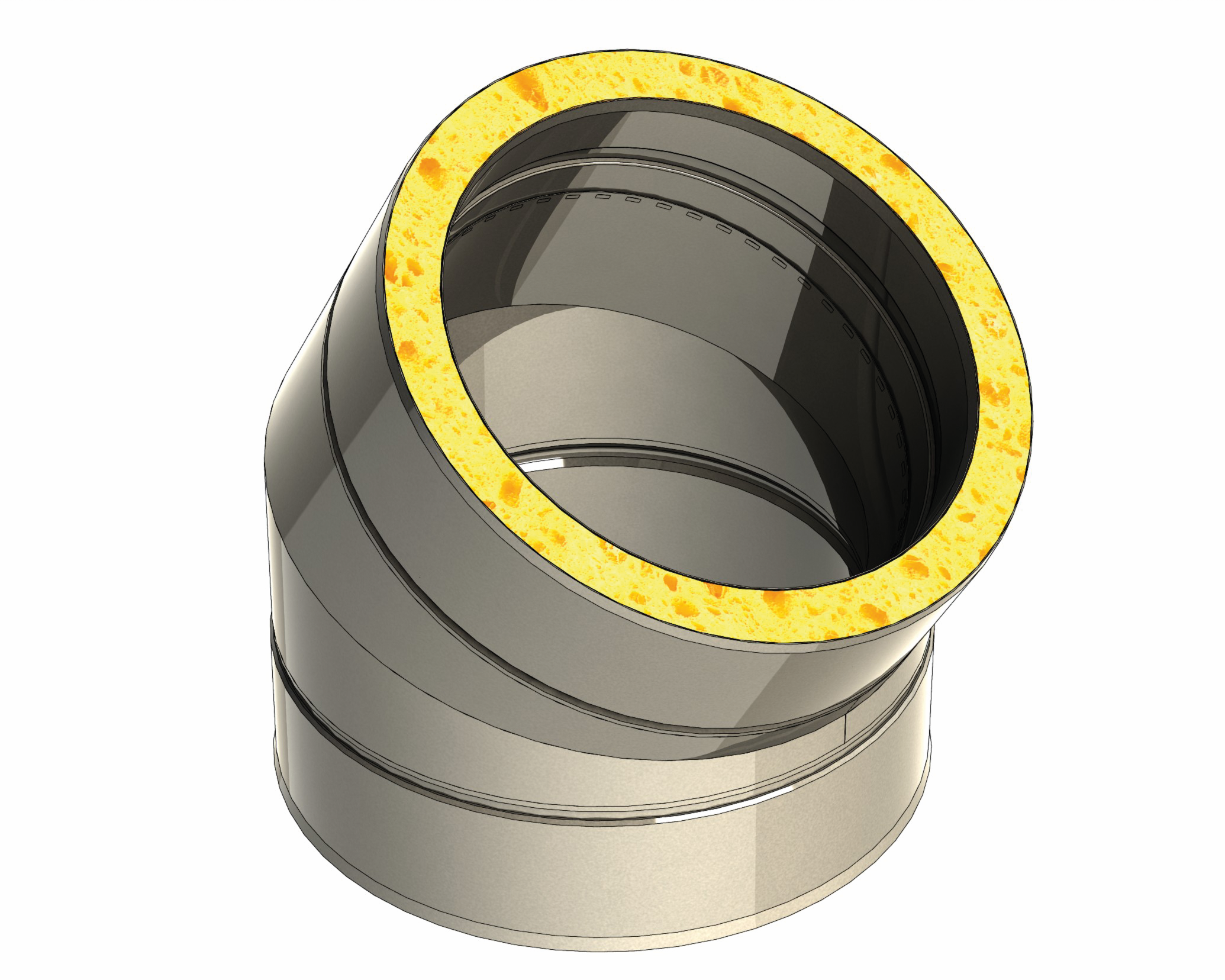

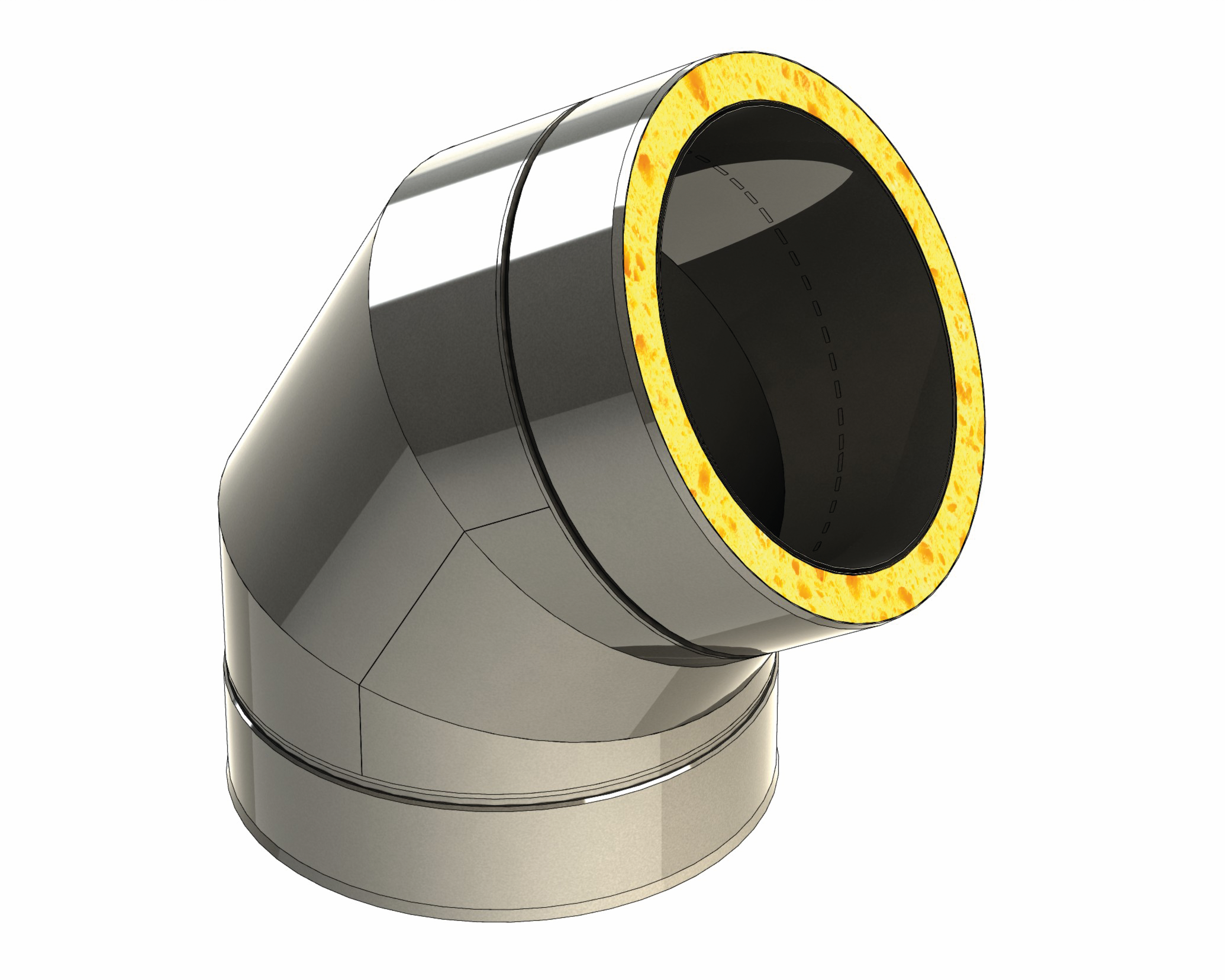

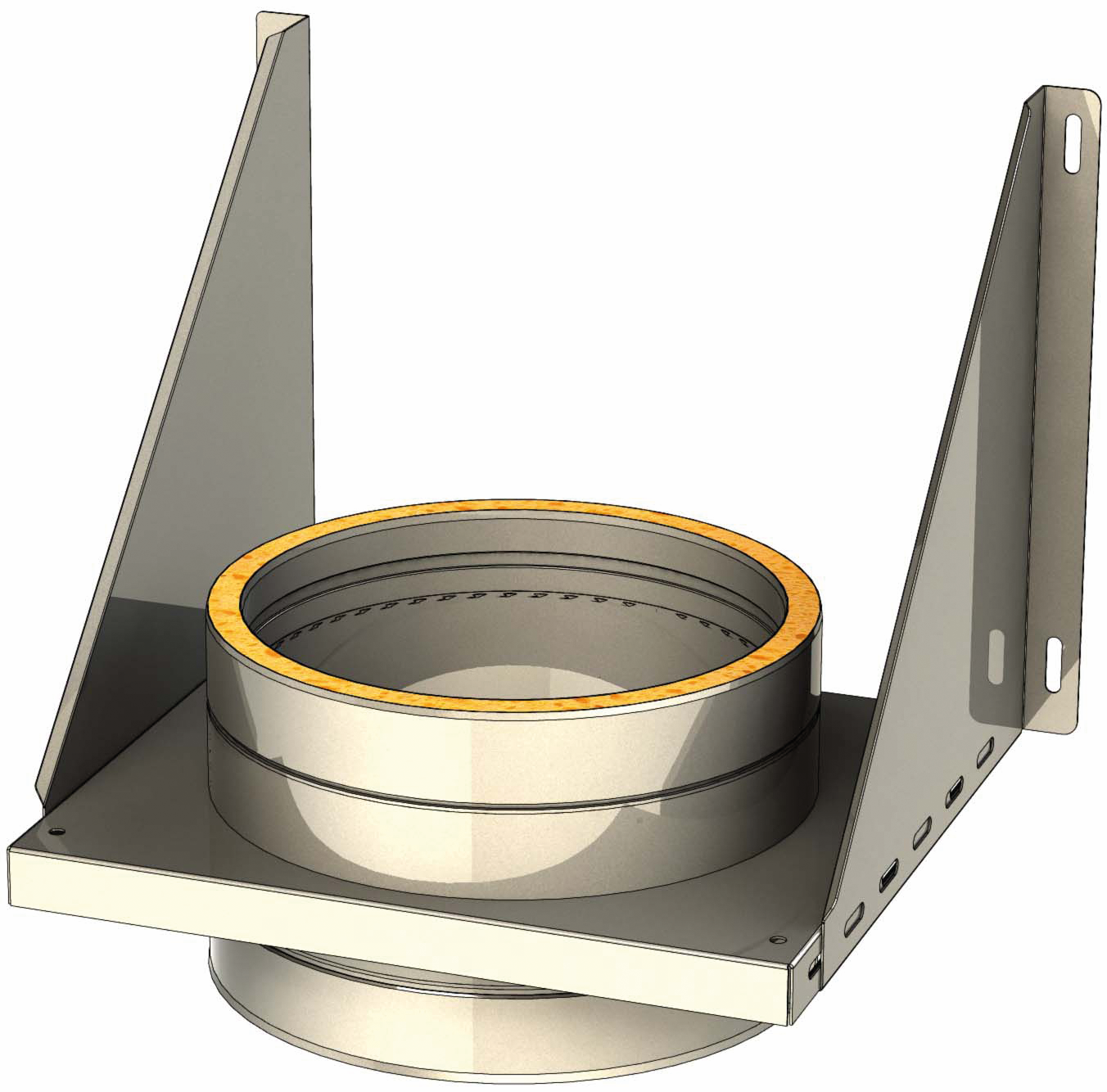

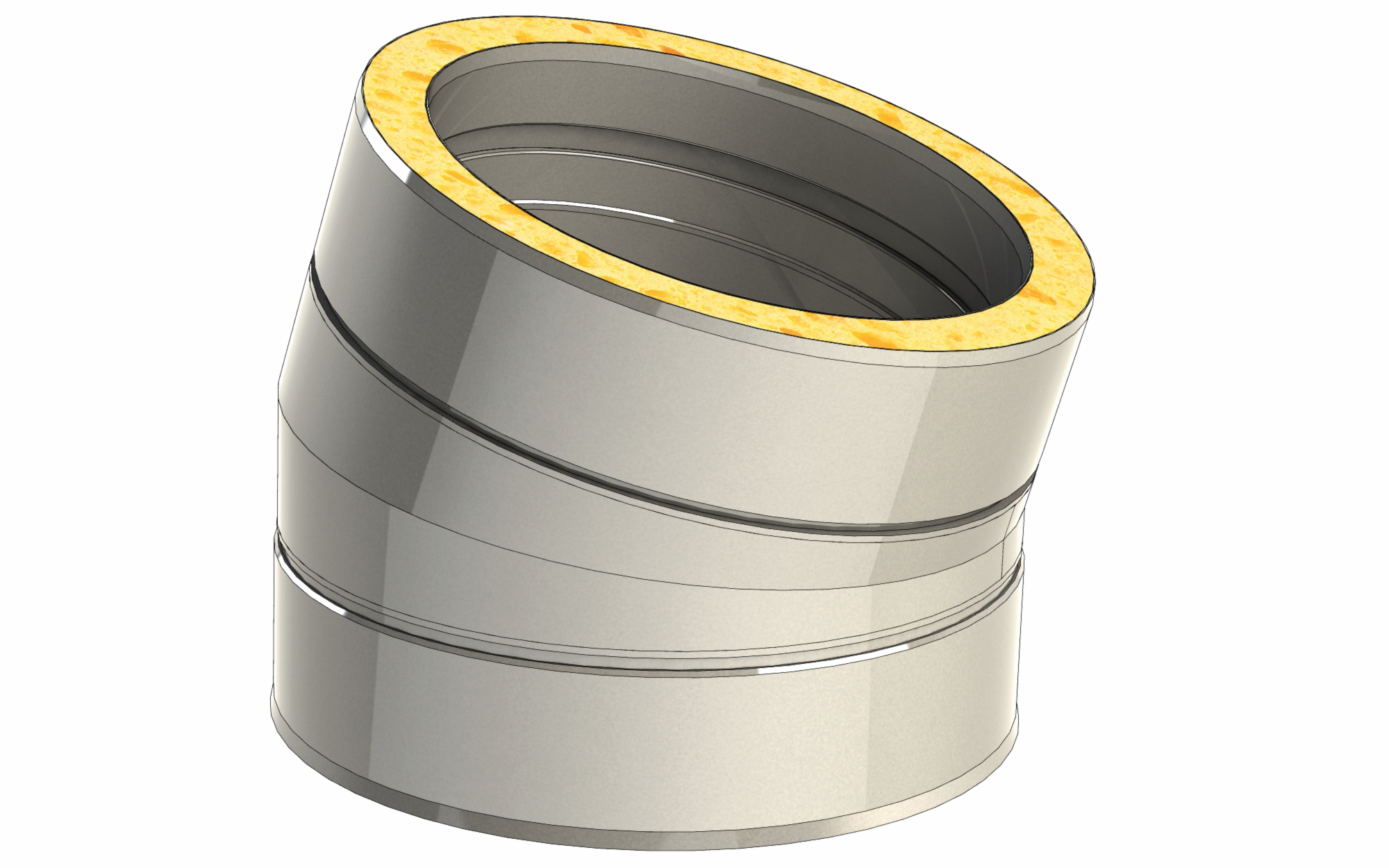

DW-ECO DW-ECO 2.0 316: Multi-purpose factory-made twin wall insulated chimney system made in stainless steel AISI 316 in the inner liner and AISI 304 outer liner perfectly designed for gas condensing flue systems

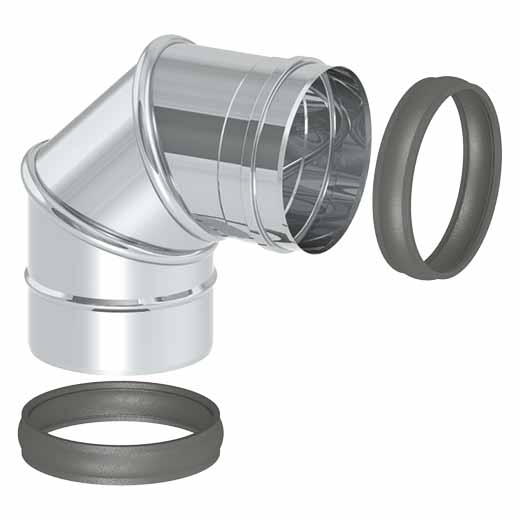

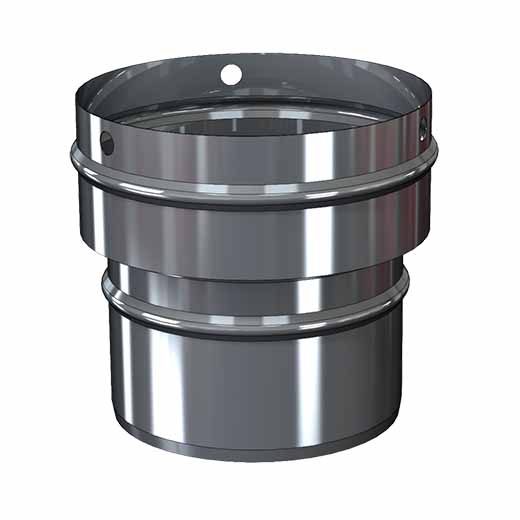

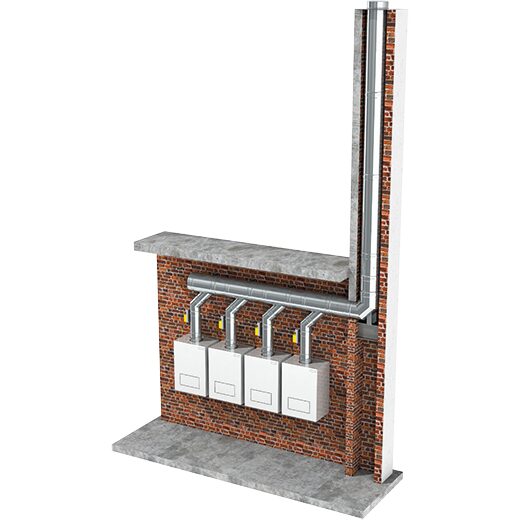

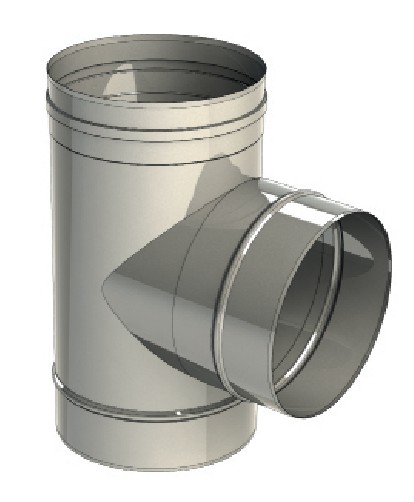

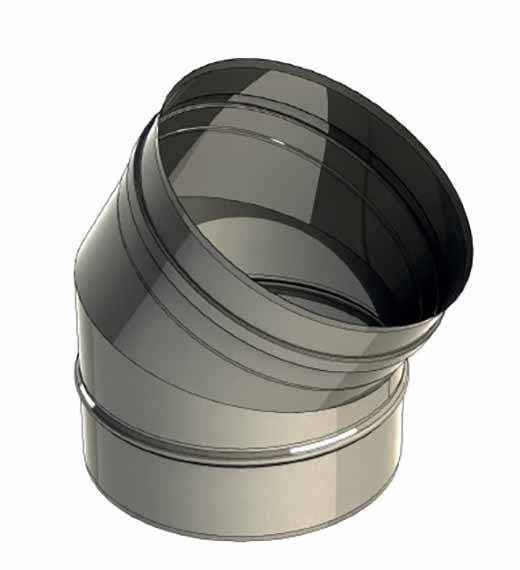

EW-ECO condensing: Chimney system made of AISI 316 austenitic steel with high corrosion resistance, specially developed for condensing appliances, boilers and fuel.
Enquire with us today
Product information
Efficient and corrosion-resistant for modern low-temperature boiler systems
The same DW ECO 2.0 platform also provides an excellent solution for gas condensing and standard pressurised boilers operating at lower flue gas temperatures. When equipped with the appropriate H1-class sealing joint, the system achieves P1 pressure class and W-class moisture resistance, making it fully compatible with condensing technology.

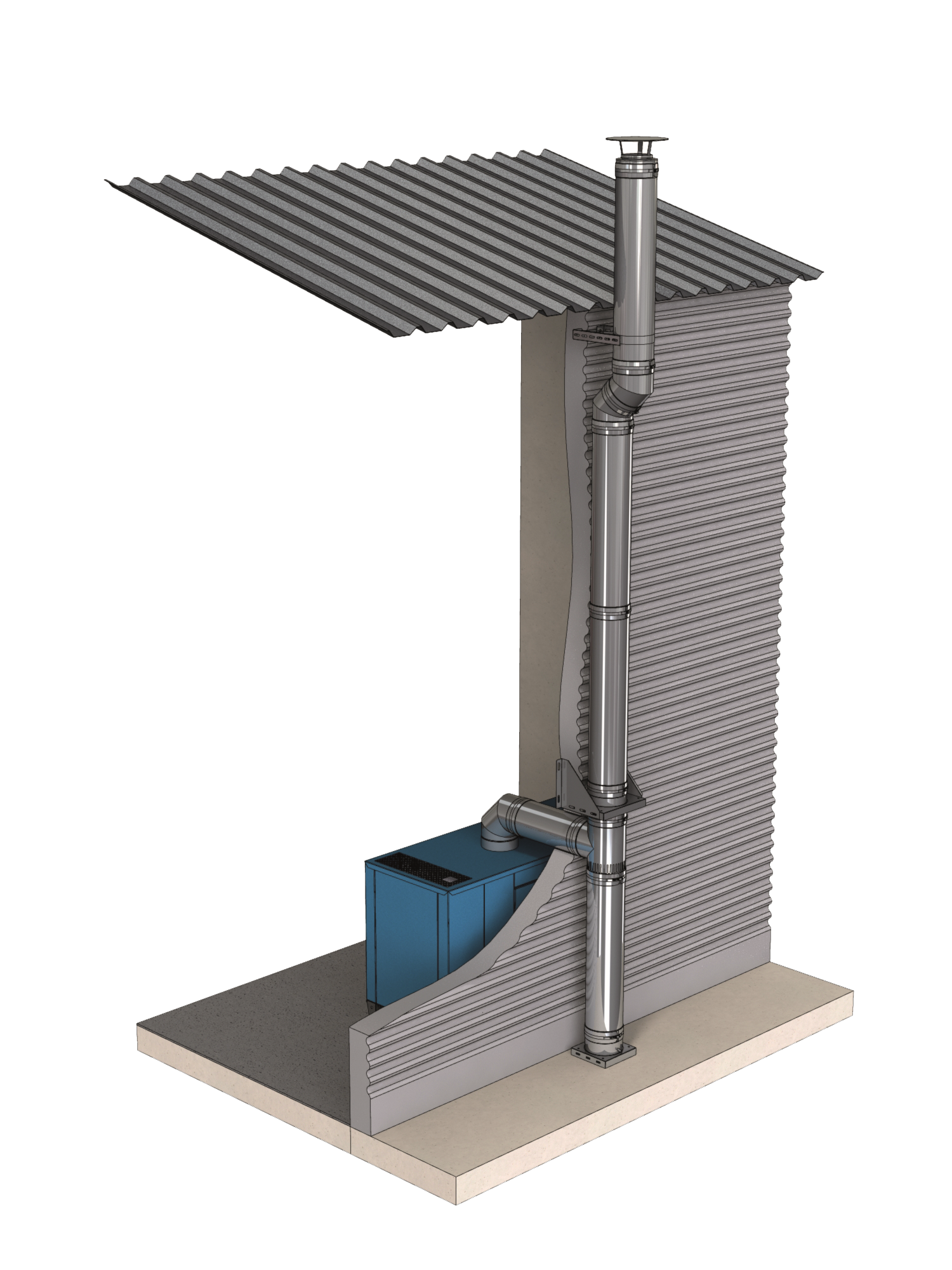

The DW ECO 2.0 316 version, featuring an AISI 316L stainless steel inner liner, is specifically designed to withstand the acidic condensates typical of condensing gas appliances. It is certified for use in systems with flue gas temperatures as low as 120 °C and includes a dedicated condensing joint seal (DW2526C) for airtight performance.
This makes DW ECO 2.0 a highly flexible solution for both new and retrofit installations in commercial buildings, where space, efficiency, and compliance are key.
| DW-ECO DW-ECO 2.0 316 | EW-ECO CONDENSING | |
|---|---|---|
| MATERIAL | Interior Wall: AISI 316 Outer Wall: AISI 304 |
AISI 316 |
| INSULATION | High density rigid rock wool (120kg / m3) | |
| WORKING TEMPERATURE | 600°C | 120°C |
| FINISHING | Bright Possibility of painting in RAL colors (See special finishes here) Possibility of galvanized / zinc-plated exterior wall (only straight sections and deviations) |
Bright annealed (BA) Possibility of painting in RAL colors (See special finishes here) |
| THICKNESS | Inner wall: 0,4 – 0,5 – 0,6 (depending on the diameter/request) Insulation: 25 mm (32 mm starting in Ø650 mm) Outer wall: 0,4 – 0,5 – 0,6 (depending on the diameter) |
0,4 – 0,5 – 0,6 (depending on the diameter/request) |
| AVAILABLE DIAMETERS (mm) | 80 – 100 – 130 – 150 – 180 – 200 – 250 – 300 – 350 – 400 – 450 – 500 – 550 – 600 – 650 – 700 – 750 – 800 | 80 – 100 – 130 – 150 – 180 – 200 – 250 – 300 – 350 – 400 – 450 – 500 – 550 – 600 |
| CONNECTION SYSTEMS | Male-female conical connection with single connection clamp up to Ø125, and wide (2.0) from Ø150mm | Male-female connection secured by locking band |
| FIRE RESISTANCE | Fire resistance classifications according to EN 13501-2: – EI180 ve (or– > i) T200 – EI120 ve (or– > i) T600 – EI120 ho (or– > i) T600 |
|
| CE CERTIFICATE | 0036 CPD 9174 061 | 0036 CPR 9174 029
CE CLASSIFICATIONS (EN 1856-1) |
| EC CLASSIFICATIONS (UNE-EN 1856-1) | T600 – N1 – D – Vm – L20040 – G (70) T600 – H1 – W – Vm – L20040 – O (50) T200 – H1 – W – Vm – L20040 – O (20) T200 – P1 – W – Vm – L20040 – O (00) |
