Fire Rated Extract Systems
Certified fire-resistant ductwork for critical ventilation and smoke extraction in commercial and industrial buildings
Jeremias UK offers a comprehensive range of fire-rated extract systems designed to maintain compartmentation and ensure safe evacuation in the event of a fire. These systems are tested and certified to provide fire resistance ratings of EI30, EI60, EI120, and beyond—up to EI180 and EI240—depending…
Enquire with us today
Product information
Manufactured within the Jeremias Group’s European facilities, these systems are rigorously tested to EN 1366-1, EN 1366-8, and EN 1366-13, and classified according to EN 13501-3 and EN 13501-4, ensuring full compliance with UK Building Regulations and international fire safety standards.
System Overview
Jeremias fire-rated systems are modular, factory-finished stainless steel ducts, featuring high-density mineral wool insulation and continuous TIG/LASER welding. They are designed to resist fire from the inside (i→o), outside (o→i), or both directions (i↔o), depending on the risk profile of the installation.
These systems are suitable for:
- Smoke and heat exhaust ventilation (SHEVS)
- Kitchen extract systems
- Escape route protection
- Fire compartmentation in commercial and industrial buildings
All systems are available in AISI 304 or 316L stainless steel, with diameters ranging from Ø130 to Ø800 mm, and can be supplied with RAL-painted or galvanised finishes.
| SYSTEM | DW-FT EI30 | SV-EI60 | SV-EI120 | SV-EI240 | DW-KL | DW-ECO EI120 |
|---|---|---|---|---|---|---|
| FIRE RATING | 30 minutes | 60 minutes | 120 minutes | 240 minutes | 120 minutes | |
| DIRECTION | i↔o | i↔o | i→o | o→i | o→i | o→i |
| TYPICAL USE | Kitchen extract, low-risk zones | Car parks, ventilation shafts | Hospitals, airports, public buildings | Hospitals, airports, public buildings | Generator and boiler rooms | Generator and boiler rooms |
| INSULATION | 25 mm | 50 mm | 100 mm | 100 mm | 50 mm | 50 mm |
Applications:

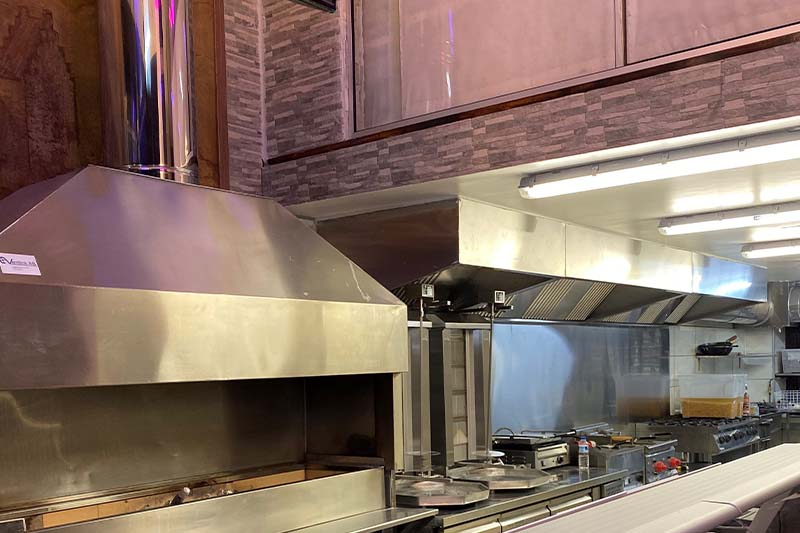

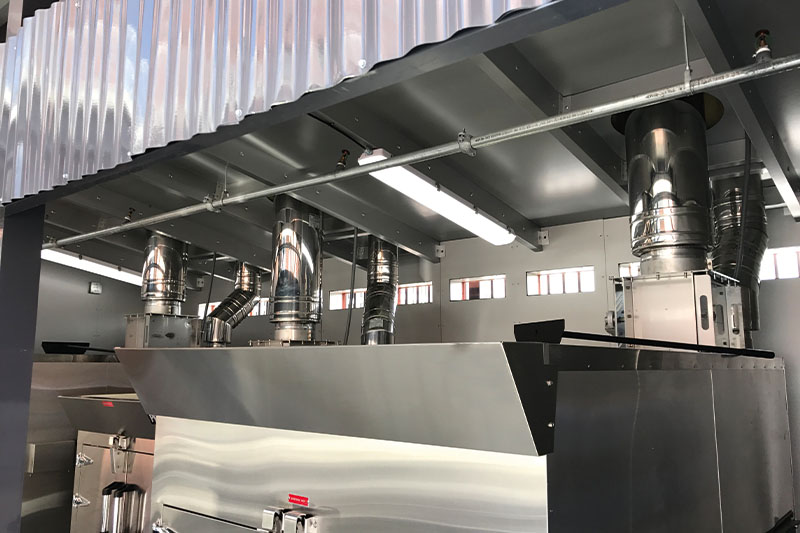

- Commercial kitchens (EI30)
- Underground car parks and vertical shafts (EI60)
- Boiler rooms and generator enclosures (EI120 / EI180)
- Hospitals, airports, and public infrastructure (EI240)
- Smoke and heat exhaust ventilation (SHEVS)
- Protected escape routes and fire compartmentation
Technical Features:
- CE-certified to EN 1856-1 and EN 1366-1 / 8 / 13
- Fire resistance classifications: EI30, EI60, EI120, EI180, EI240
- Sealing class C (with gasket) per EN 12237
- Pressure resistance: Up to 5000 Pa (H1)
- Modular push-fit or flanged connections
- No need for on-site sealants
- Inspection doors and fire-rated wall penetrations available
- Custom RAL finishes and galvanised options
Why Choose Jeremias UK?
- Extensive range of certified fire-rated systems for ventilation and smoke extraction
- Modular, factory-built design for fast and secure installation
- Fully compliant with UK and international fire safety standards
- Technical support for design, certification, documentation, and site assistance
- Backed by the Jeremias Group, a global leader in flue, duct, and passive fire protection systems
